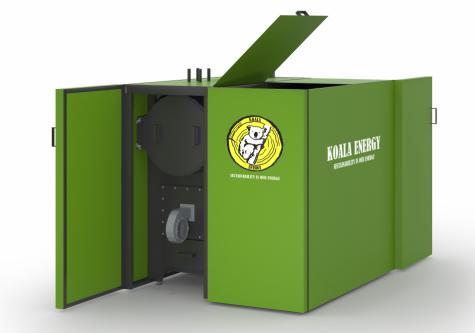

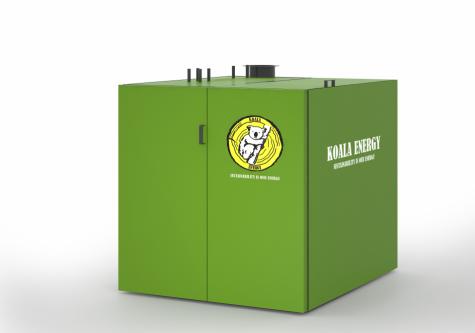

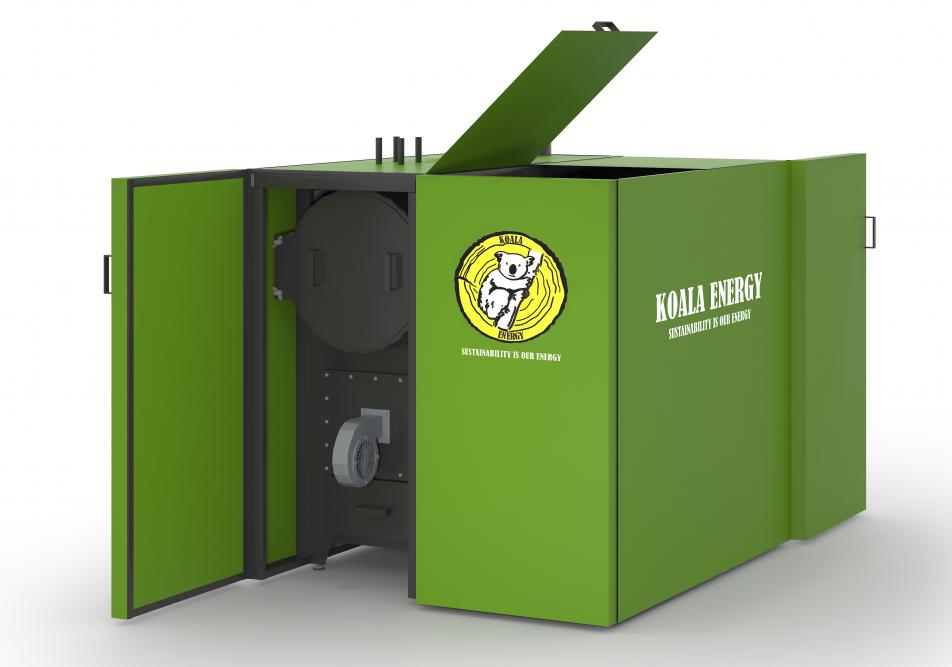

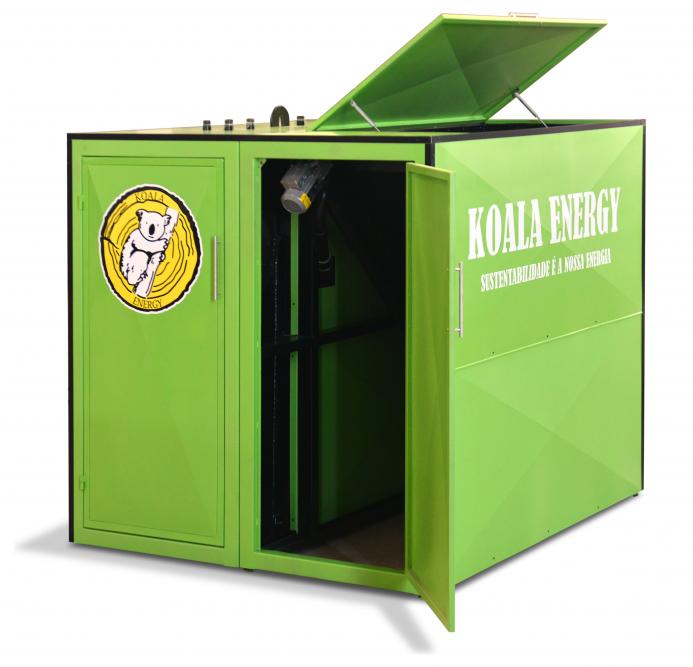

Heat Exchanger KO65

MODEL: KO65
Contact Us
Request quote

Description

The heat exchanger is a device that results in savings in the generation of water and hot air heating. Its operation is totally sustainable, since wood pellets are used as renewable fuel.

Suitable for hotels and inns with up to 50 apartments, large houses, pools and etc...

Characteristics:

- Savings in the generation of water / hot air heating;

- Use of wood pellets, renewable fuel.

Advantages:

- Cost x Benefits;

- Can be 100% automated;

- User interface simplicity.

Pellets:

We suggest the use of pellets with the EN plus A1 certification based on the ISO 17225-2 standards and also the FSC seal. Increase the equipment durability and its eficiency, generating higher economy and less maintenance.

Characteristics

Rated power (kW) 65,5
Min. Power (kW) 7,0
Performance (%) 75,0
Max. - Min. Consumption (kg/h) 20,0 - 2,0
Max. - Min. Autonomy (hrs) 75 - 7,5
Smoke Temperature (ºC) 130,0 - 180,0
Water Volume (l) 200,0
Silo Capacity (kg) 150,0
Maximum pressure (Bar) 2,0
Test Pressure (Bar) 3,0
Dimensions (WxHxL) (cm) 120x120x120
One-way connections (in) 1,1/2
Power Supply (V/Hz/CA) 380/60/1,7 ~
Electric Consumptio (W) 1700,0
Ø Smoke Outlet Diameter (mm) 150,0
Weight (kg) 450,0
